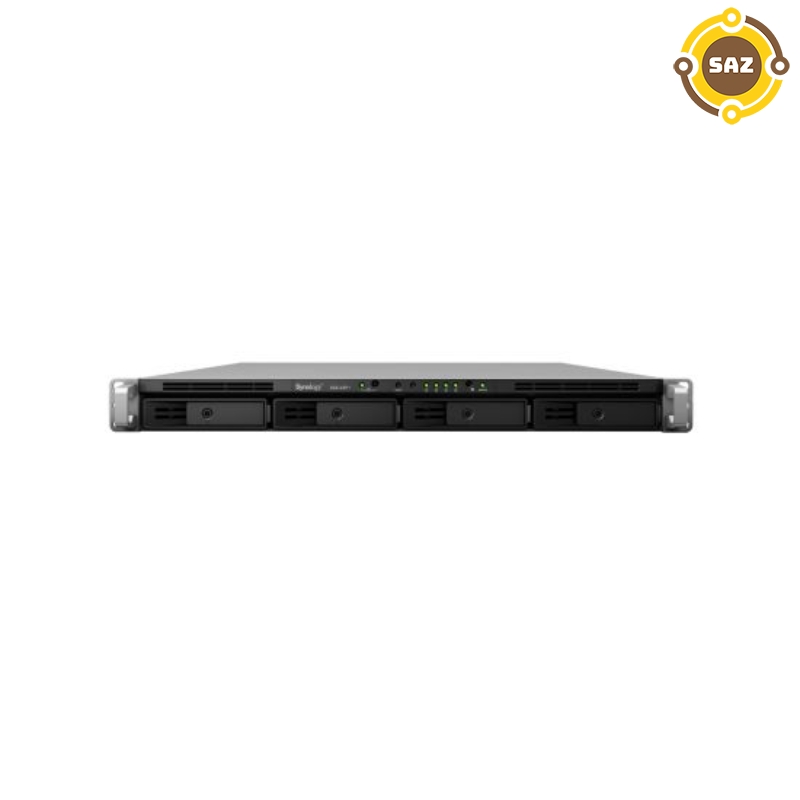

SYNOLOGY RS820RP+

SYNOLOGY RS820RP+

Mã sản phẩm: rs820rp+

SYNOLOGY RS820RP+

Processor: Intel Atom C3538 (Quad Core 2.1 GHz)

Memory: 1 x 2 GB DDR4

External Ports: RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support), USB 3.0 Gen 1 Port 2, eSATA Port 1

PCIe Expansion: 1 x Gen3 x8 slot (black, x4 link)

Hard Drive: Support 3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD

Internal Storage: Btrfs EXT4

External Drives: Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT*

Form Factor: 1U

Power Supply: 150 W

Xem thêm >

Giá: Liên hệ
Liên hệ

Trợ giúp

Tùy chọn sản phẩm

chi tiết sản phẩm

CPU CPU Model Intel Atom C3538
  CPU Architecture 64-bit
  CPU Frequency Quad Core 2.1 GHz
  Hardware Encryption Engine (AES-NI)
Memory System Memory 2 GB DDR4
  Total Memory Slots 1
  Memory Expandable up to 18 GB (2GB + 16 GB)
  Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage Drive Bays 4
  Maximum Drive Bays with Expansion Unit 8
  Compatible Drive Type* (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
  Maximum Internal Raw Capacity 64 TB (16 TB drive x 4) (Capacity may vary by RAID types)
  Maximum Raw Capacity with Expansion Units 128 TB (64 TB + 16 TB drive x 4) (Capacity may vary by RAID types)
  Maximum Single Volume Size* 108 TB
  Hot Swappable Drive
  Notes
  • “Compatible drive type” indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
  • Expansion of the internal volume is only supported if the combined single volume size does not exceed the maximum limit of 108 TB.
External Ports RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
  USB 3.0 Port 2
  eSATA Port 1
PCIe PCIe Expansion 1 x Gen3 x8 slot (black, x4 link)
  Add-In-Card Support
  • PCIe Network Interface Card (Learn more)
  • M2D18 – Dual M.2 SATA/NVMe SSD adapter card for SSD cache
File System Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
  Notes exFAT Access is purchased separately in Package Center.
Appearance Form Factor (RU) 1U
  Size (Height x Width x Depth) 44 mm x 480 mm x 492.6 mm



44 mm x 480 mm x 518.6 mm (for RP model)
  Weight 6.4 kg



7.96 kg (for RP model)
  Rack Installation Support 4-post 19″ rack (Synology Rail Kit – RKM114/RKS1317)
  Notes The rail kit is sold separately
Others System Fan 40 mm x 40 mm x 3 pcs



40 mm x 40 mm x 2 pcs (for RP model)
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Power Recovery
  Noise Level* 27 dB(A)



39.9 dB(A) (for RP model)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter 150 W
  Redundant Power Supply yes (for RP model)
  AC Input Power Voltage 100 V to 240 V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption* 37.94 W (Access)



20.96 W (HDD Hibernation)

38.88 W (Access) (for RP model)

22.17 W (HDD Hibernation) (for RP model)
  British Thermal Unit 129.54 BTU/hr (Access)



71.57 BTU/hr (HDD Hibernation)

132.75 BTU/hr (Access) (for RP model)

75.70 BTU/hr (HDD Hibernation) (for RP model)
  Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature Operating Temperature 0°C to 35°C (32°F to 95°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH
Certification
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI
Warranty 3-year hardware warranty, extendable to 5-year coverage – EW202
