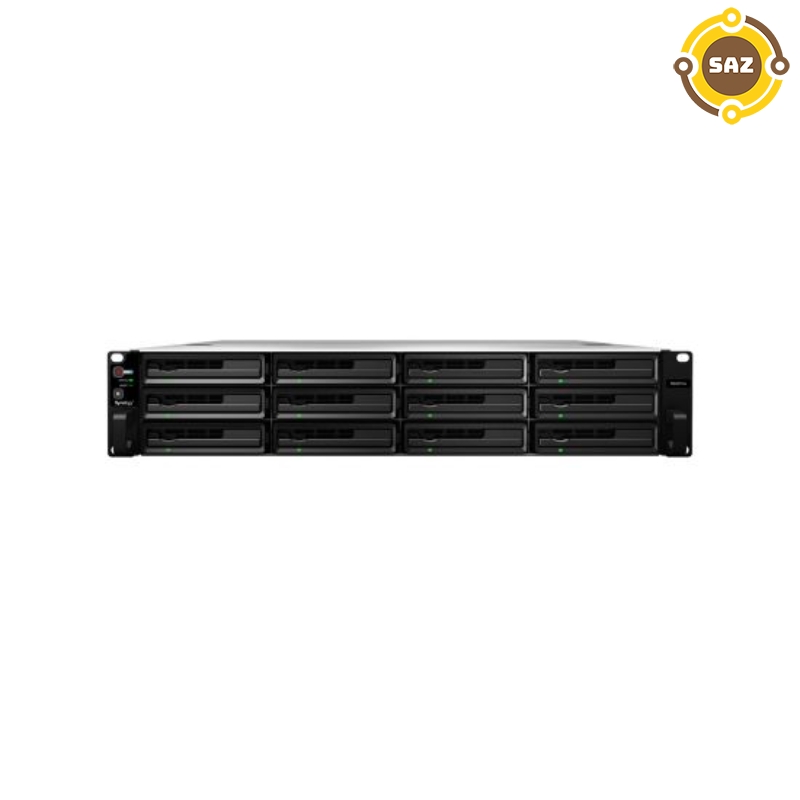

Mã sản phẩm: rs3618xs
Processor: Intel Xeon D-1521 (4-core 2.4 (base) / 2.7 (turbo) GHz)
Memory: 1 x 8 GB DDR4 ECC UDIMM
External Ports: RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support), USB 3.2 Gen 1 Port 2, Expansion Port 2
PCIe Expansion: 2 x Gen3 x8 slots (x8 link)
Hard Drive: Support 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
|
CPU |
CPU Model | Intel Xeon D-1521 |
|---|---|---|
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 4-core 2.4 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
|
Memory |
System Memory | 8 GB DDR4 ECC UDIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) | |
| Total Memory Slots | 4 | |
| Maximum Memory Capacity | 64 GB (16 GB x 4) | |
| Notes |
|
|
|
Storage |
Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 36 (RX1217/RX1217RP x 2) | |
| Compatible Drive Type* (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
| Notes | "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. | |
|
External Ports |
RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 2 | |
| Expansion Port | 2 | |
| Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
|
PCIe |
PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
|
File System |
Internal Drives |
|
| External Drives |
|
|
| Notes | exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center. | |
|
Appearance |
Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
| Weight | 14.5 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
| Notes | The rail kit is sold separately | |
|
Others |
System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
|
|
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level* | 50.2 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 500 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 142.76 W (Access) 55.05 W (HDD Hibernation) |
|
| British Thermal Unit | 487.12 BTU/hr (Access) 187.84 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
Temperature |
Operating Temperature | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification |
|
|
|
Warranty |
5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
|
Environment |
RoHS Compliant | |
|
Packaging Content |
|
|
|
Optional Accessories |
|
|
| Notes | All memory modules will operate at the maximum frequency specified by the CPU manufacturer. | |
