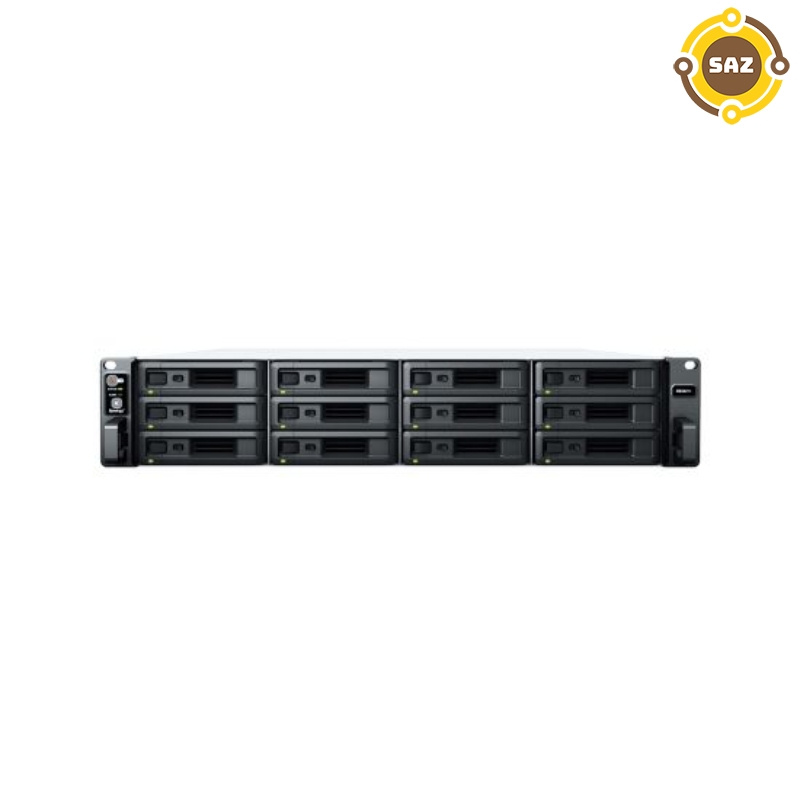

SYNOLOGY RS2421+

SYNOLOGY RS2421+

Mã sản phẩm: rs2421+

SYNOLOGY RS2421+

Processor: AMD Ryzen V1500B (4-core 2.2 GHz)

Memory: 1 x 4 GB DDR4 ECC UDIMM

External Ports: RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support), USB 3.2 Gen 1 Port 2, Expansion Port 1

PCIe Expansion: 1 x Gen3 x2 network upgrade slot

Hard Drive: Support 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD

Internal Storage: Btrfs EXT4

External Drives: Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT

Form Factor: 2U

Power Supply: 500 W

Xem thêm >

Giá: Liên hệ
Liên hệ

Trợ giúp

Tùy chọn sản phẩm

chi tiết sản phẩm

CPU

 CPU Model AMD Ryzen V1500B
  CPU Quantity 1
  CPU Architecture 64-bit
  CPU Frequency 4-core 2.2 GHz
  Hardware Encryption Engine (AES-NI)

Memory

 System Memory 4 GB DDR4 ECC UDIMM
  Memory Module Pre-installed 4 GB (4 GB x 1)
  Total Memory Slots 2
  Maximum Memory Capacity 32 GB (16 GB x 2)
  Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.

Storage

 Drive Bays 12
  Maximum Drive Bays with Expansion Unit 24 (RX1217/RX1217RP x 1)
  Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  Hot Swappable Drive*
  Notes
  • It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

 RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
  USB 3.2 Gen 1 Port* 2
  Expansion Port 1
  Notes The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

 PCIe Expansion 1 x Gen3 x8 slot (x4 link)

File System

 Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
  Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

Appearance

 Form Factor (RU) 2U
  Size (Height x Width x Depth) RS2421+ :88 mm x 482 mm x 552 mmRS2421RP+ :88 mm x 482 mm x 578 mm
  Weight RS2421+ :11.5 kgRS2421RP+ :11.9 kg
  Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02)
  Notes The rail kit is sold separately

Others

 System Fan 60 mm x 60 mm x 3 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Easy Replacement System Fan
  Power Recovery
  Noise Level* RS2421+ :50.1 dB(A)RS2421RP+ :54 dB(A)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter RS2421+ :500 WRS2421RP+ :350 W
  Redundant Power Supply RS2421+ :-RS2421RP+ :
  AC Input Power Voltage 100V to 240V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption RS2421+ :79.56 W (Access) 34.89 W (HDD Hibernation)
RS2421RP+ :91.76 W (Access) 48.21 W (HDD Hibernation)
  British Thermal Unit RS2421+ :271.65 BTU/hr (Access) 119.13 BTU/hr (HDD Hibernation)
RS2421RP+ :313.31 BTU/hr (Access) 164.61 BTU/hr (HDD Hibernation)
  Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

 Operating Temperature 0°C to 35°C (32°F to 95°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH

Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • CCC
  • KC
  • UL
  • VCCI
  • RCM

Warranty

 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus
  Notes
  • Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

 RoHS Compliant

Packaging Content

 RS2421+ :
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Quick Installation Guide X 1
RS2421RP+ :
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1

Optional Accessories
  Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
