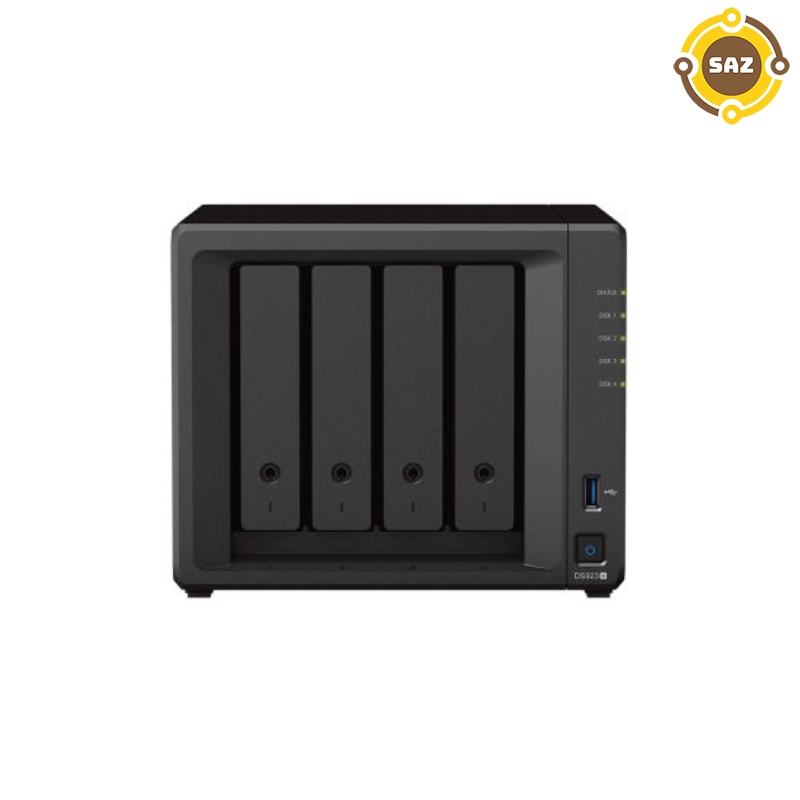

SYNOLOGY DS923+

SYNOLOGY DS923+

Mã sản phẩm: ds923+

SYNOLOGY DS923+

Processor: AMD Ryzen R1600 (2-core 2.6 (base) / 3.1 (turbo) GHz)

Memory: 1 x 4 GB DDR4 ECC

External Ports: RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support), USB 3.2 Gen 1 Port 2, eSATA Port 1

PCIe Expansion: 1 x Gen3 x2 network upgrade slot

Hard Drive: Support 3.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD

Internal Storage: Btrfs, EXT4

External Drives: Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT

Power Supply: 100 W

Xem thêm >

Giá: Liên hệ
Liên hệ

Trợ giúp

Tùy chọn sản phẩm

chi tiết sản phẩm

CPU

 CPU Model AMD Ryzen R1600
  CPU Quantity 1
  CPU Architecture 64-bit
  CPU Frequency 2-core 2.6 (base) / 3.1 (turbo) GHz
  Hardware Encryption Engine (AES-NI)

Memory

 System Memory 4 GB DDR4 ECC
  Memory Module Pre-installed 4 GB (4 GB x 1)
  Total Memory Slots 2
  Maximum Memory Capacity 32 GB (16 GB x 2)
  Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Storage

 Drive Bays 4
  Maximum Drive Bays with Expansion Unit 9 (DX517 x 1)
  M.2 Drive Slots 2 (NVMe)
  Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe SSD
  Hot Swappable Drive*
  Notes
  • The hot swappable drive feature is not supported by M.2 SSD slots.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

 RJ-45 1GbE LAN Port* 2 (with Link Aggregation / Failover support)
  USB 3.2 Gen 1 Port* 2
  eSATA Port 1
  Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

 PCIe Expansion 1 x Gen3 x2 network upgrade slot

File System

 Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
  Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

Appearance

 Size (Height x Width x Depth) 166 mm x 199 mm x 223 mm
  Weight 2.24 kg

Others

 System Fan 92 mm x 92 mm x 2 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Brightness Adjustable Front LED Indicators
  Power Recovery
  Noise Level* 22.9 dB(A)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter 100 W
  AC Input Power Voltage 100V to 240V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption 35.51 W (Access)
11.52 W (HDD Hibernation)
  British Thermal Unit 121.09 BTU/hr (Access)
39.28 BTU/hr (HDD Hibernation)
  Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

 Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH

Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC

Warranty

 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
  Notes
  • Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

 RoHS Compliant

Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1

Optional Accessories
XEM THÊM
