SMALL AND MEDIUM BUSINESS

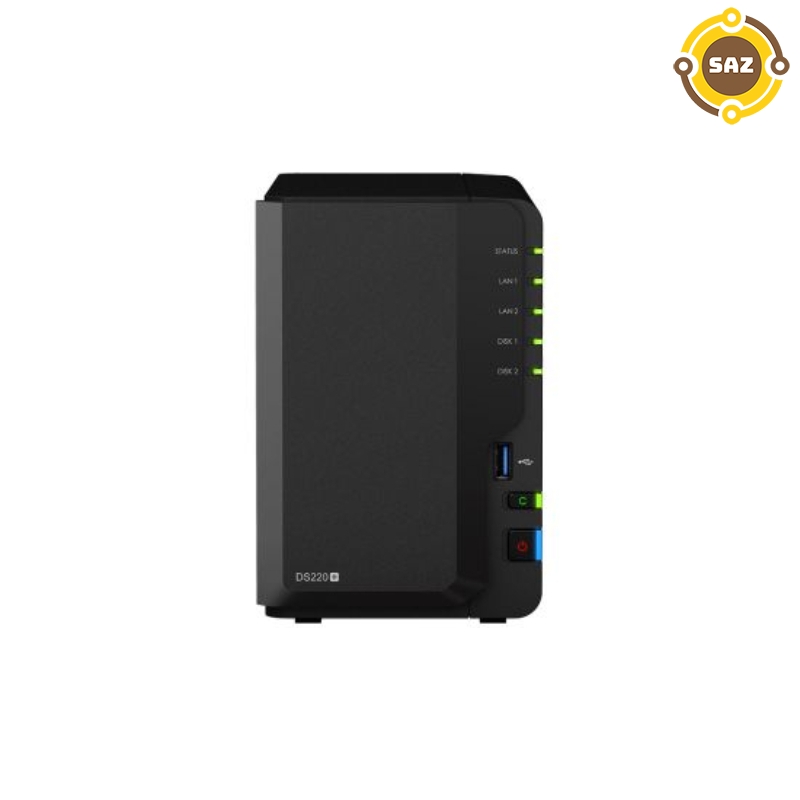

SYNOLOGY DS220+

Mã sản phẩm: ds220+

Processor: Intel Celeron J4025 (2-core 2.0 (base frequency) / 2.9 (burst frequency) GHz)

Memory: 1 x 2 GB DDR4 non-ECC

External Ports: RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support), USB 3.2 Gen 1 Port 2, USB / SD Copy

Hard Drive: Support 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD

Internal Storage: Btrfs EXT4

Xem thêm >

Giá: Liên hệ

Liên hệ

Trợ giúp

Tùy chọn sản phẩm

chi tiết sản phẩm

CPU	CPU Model	Intel Celeron J4025
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	2-core 2.0 (base) / 2.9 (burst) GHz
	Hardware Encryption Engine (AES-NI)
Memory	System Memory	2 GB DDR4 non-ECC
	Total Memory Slots	1
	Maximum Memory Capacity	6 GB (2 GB + 4 GB)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage	Drive Bays	2
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*
	Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
	USB 3.2 Gen 1 Port*	2
	USB / SD Copy
	Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
	Notes	exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance	Size (Height x Width x Depth)	165 mm x 108 mm x 232.2 mm
	Weight	1.30 kg
Others	System Fan	92 mm x 92 mm x 1 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	19.3 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	60 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	14.69 W (Access) 4.41 W (HDD Hibernation)
	British Thermal Unit	50.12 BTU/hr (Access) 15.05 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI EAC CCC KC VCCI RCM
Warranty	2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
	Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 non-ECC SODIMM: D4NESO-2666-4G 3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5210 VisualStation: VS360HD Surveillance Device License Pack
	Notes	All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
