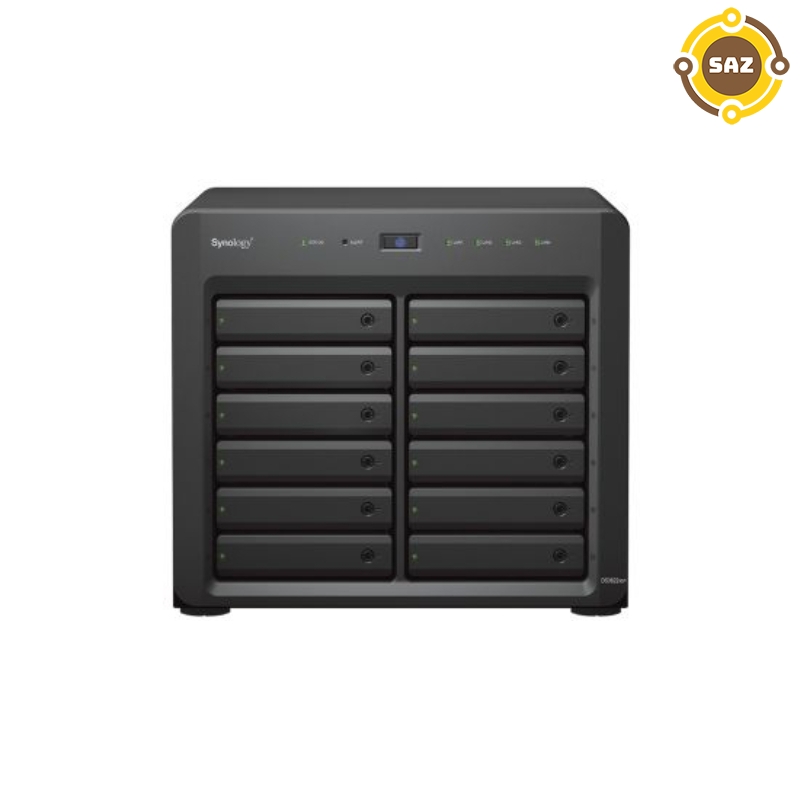

SYNOLOGY DS3622xs+

SYNOLOGY DS3622xs+

Mã sản phẩm: ds3622xs+

SYNOLOGY DS3622xs+

Processor: Intel Xeon D-1531 (6-core 2.2 (base) / 2.7 (turbo) GHz)

Memory: 1 x 16 GB DDR4 ECC SODIMM

External Ports: RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support), Management LAN Port 1, USB 3.2 Gen 1 Port 2, Expansion Port 2

PCIe Expansion: 1 x Gen3 x2 network upgrade slot

Hard Drive: Support 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD

Internal Storage: Btrfs EXT4

External Drives: Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT

Power Supply: 550 W

Xem thêm >

Giá: Liên hệ
Liên hệ

Trợ giúp

Tùy chọn sản phẩm

chi tiết sản phẩm

CPU

 CPU Model Intel Xeon D-1531
  CPU Quantity 1
  CPU Architecture 64-bit
  CPU Frequency 6-core 2.2 (base) / 2.7 (turbo) GHz
  Hardware Encryption Engine (AES-NI)

Memory

 System Memory 16 GB DDR4 ECC SODIMM
  Memory Module Pre-installed 16 GB (8 GB x 2)
  Total Memory Slots 4
  Maximum Memory Capacity 48 GB (8 GB x 2 + 16 GB x 2)
  Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.

Storage

 Drive Bays 12
  Maximum Drive Bays with Expansion Unit 36 (DX1222 x 2)
  Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  Hot Swappable Drive*
  Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

 RJ-45 1GbE LAN Port* 2 (with Link Aggregation / Failover support)
  RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
  Management LAN Port 1
  USB 3.2 Gen 1 Port* 2
  Expansion Port 2
  Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

 PCIe Expansion 1 x Gen3 x8 slot (x8 link)

File System

 Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
  Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

Appearance

 Size (Height x Width x Depth) 270 mm x 300 mm x 340 mm
  Weight 9.8 kg

Others

 System Fan 120 mm x 120 mm x 2 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Easy Replacement System Fan
  Power Recovery
  Noise Level* 25 dB(A)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter 550 W
  AC Input Power Voltage 100V to 240V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption 94.42 W (Access)
54.33 W (HDD Hibernation)
  British Thermal Unit 322.39 BTU/hr (Access)
185.51 BTU/hr (HDD Hibernation)
  Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

 Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH

Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • KC
  • UL

Warranty

 5 Years
  Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

 RoHS Compliant

Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1

Optional Accessories
  Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
