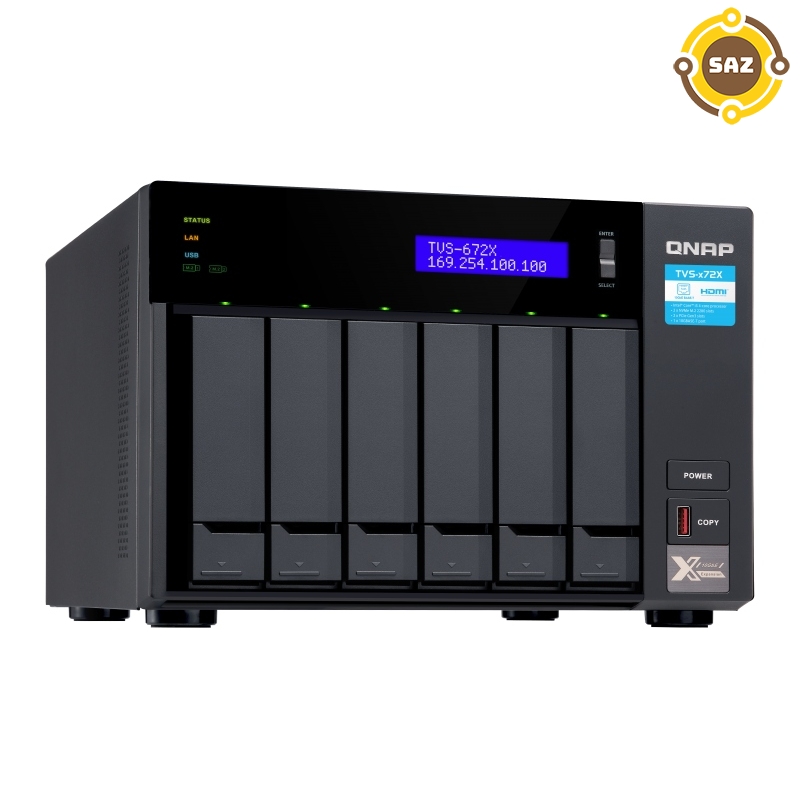

QNAP TVS-672X-i5-8G

CPU

Intel® Core™ i5-8400T 6-core/6-thread Processor, burst up to 3.3 GHz

CPU Architecture

64-bit x86

Graphic Processors

Intel® UHD Graphics 630

Floating Point Unit

√

Encryption Engine

√(AES-NI)

Hardware-accelerated Transcoding

√

System Memory

8 GB SODIMM DDR4 (1 x 8 GB)

Maximum Memory

64GB (2 x 32 GB)

Memory Slot

2 x SO-DIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Drive Bay

6 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

Hot-swappable

√

M.2 Slot

2 x M.2 2280 PCIe Gen3 x2 slots

SSD Cache Acceleration Support

√

Gigabit Ethernet Port (RJ45)

2

10 Gigabit Ethernet Port

1 x 10GBASE-T (10G/5G/2.5G/1G/100M)

Wake on LAN (WOL)

√

Jumbo Frame

√

PCIe Slot

2

Slot 1: PCIe Gen 3 x16 (CPU)

Slot 2: PCIe Gen 3 x4 (PCH)

USB 3.2 Gen 1 port

1

USB 3.2 Gen 2 (10Gbps) Port

2 x Type-C USB 3.2 Gen 2 10Gbps

2 x Type-A USB 3.2 Gen 2 10Gbps

IR Sensor

√(QNAP RM-IR004 & MCE)

HDMI Output

1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)

Form Factor

Tower

LED Indicators

HDD 1-6, Status, LAN, USB port, M.2 port

LCD Display/ Button

√

Buttons

Power, Reset, USB Copy

Dimensions (HxWxD)

7.41 × 10.41 × 11.01 inch

Weight (Net)

14.45 lbs

Operating temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

250W, 100-24V

Power Consumption: HDD Sleep Mode

26.52 W

Power Consumption: Operating Mode, Typical

45.6 W

Fan

System fan: 1 x 120mm, 12VDC

CPU fan: 2 x 60mm blower fan

Sound Level

23.8 db(A)

System Warning

Voice prompts or Buzzer

Kensington Security Slot

√

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

2500
