Mã sản phẩm: t150-e-2334-8gb-2tb
Processor: Intel® Xeon® E-2334 3.4GHz, 8M Cache, 4C/8T, Turbo (65W), 3200 MT/s
Memory: 1 x Dell 8GB DDR4 1RX8 3200MHz ECC Unbuffered DIMM
Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM
Raid Controller: Support PERC S150, PERC H345, PERC H755, HBA355i
Hard Drive: Dell 2TB 7.2K RPM SATA 6Gbps 512n 3.5in Cabled Hard Drive

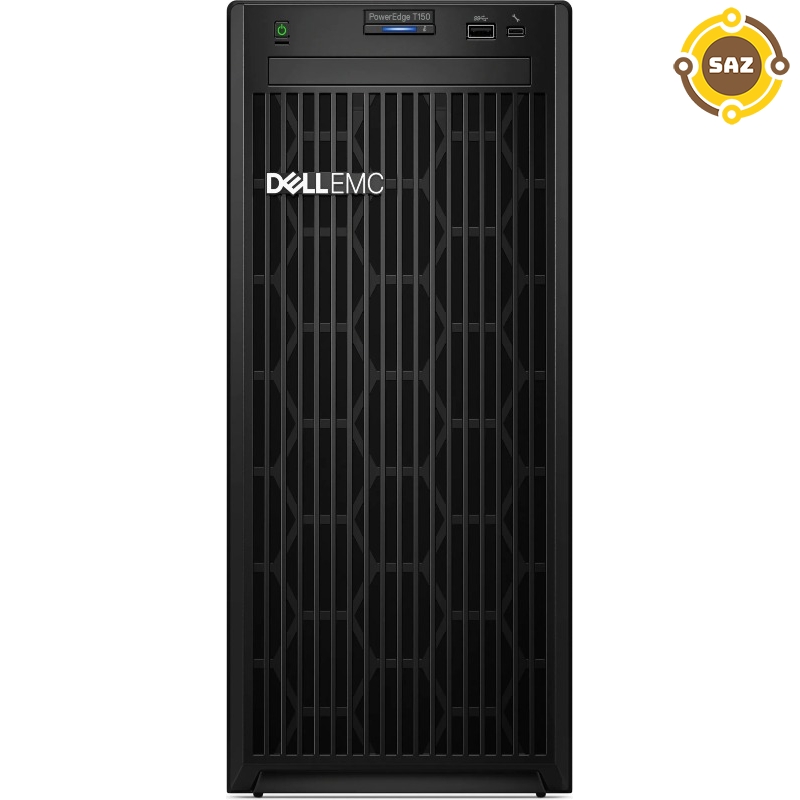

Dell PowerEdge T150 Tower được hỗ trợ bởi bộ xử lý Intel Xeon E-2324G, mang lại khả năng tính toán mạnh mẽ cho các ứng dụng kinh doanh thông thường và hợp lý hóa năng suất. Dell PowerEdge T150 Tower với sự cân bằng lý tưởng về khả năng thích ứng và chi phí thấp được thiết kế để đáp ứng nhu cầu máy tính ngày càng tăng cấp doanh nghiệp.
Xét về mặt tổng thể, Dell PowerEdge T150 Tower trang bị 2 khe cắm PCIe Gen4 và 2 khe PCIe Gen3. Dòng Intel Xeon E-2334 bị giới hạn PCIe, nhưng Dell đã tạo nên sự khác biệt khi đã tạo ra không gian rộng hơn cho các PCIe Lanes ngay cả khi độ rộng đã bị giảm đi.
Tối đa hóa hiệu suất và đáp ứng nhu cầu tạo ra với kiến trúc phục hồi không gian mạng nhằm xây dựng tính bảo mật ở mọi giai đoạn của vòng đời của máy chủ.
Giải quyết những cải tiến đáng kể về thông lượng với hỗ trợ PCIe Gen 4. Dell PowerEdge T150 Tower hỗ trợ các tính năng cơ bản giải quyết tất cả các khối lượng công việc phổ biến như hợp nhất tập tin, lưu trữ và chia sẻ dữ liệu.
Máy chủ Dell cung cấp khả năng bảo mật được cải thiện và thời gian khởi động nhanh hơn với UEFI Secure Boot.
Feature | Technical Specifications | |
Processor | One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores | |
Memory | • Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s • Supports unregistered ECC DDR4 DIMMs only NOTE: For Pentium processor, maximum memory speed supported is 2666 MT/s |
|
Storage controllers | • Internal controllers (RAID): PERC H755, PERC H345, HBA355i, S150 • Internal Boot: USB, Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs • External HBAs (non-RAID): HBA355e |
|
Drive bays | 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB | |
Power supplies | • 300W Bronze 100-240 VAC, cabled • 400W Platinum 100-240 VAC, cabled (available only from Dec’21) |
|
Fans | One cabled fan | |
Dimensions | • Height: 360 mm (14.17 inches) • Width: 175 mm (6.88 inches) • Depth: 453.75 mm (17.86 inches) with bezel |
|
Form Factor | 4U mini tower server | |
Embedded management | iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module |
|
Bezel | Security bezel | |
OpenManage Software | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
|
Mobility | OpenManage Mobile | |
Integrations and Connections | OpenManage Integrations | OpenManage Connections |
• BMC Truesight • Microsoft System Center • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager |
• IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • Nagios Core • Nagios XI |
|
Security | • Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
Embedded NIC | 2 x 1 GbE LOM | |
Ports | 2 x 1 GbE LOM Ports Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 3. |
Rear Ports • 5 x USB 2.0 • 1 x iDRAC ethernet port • 1 x USB 3.0 • 1 x Serial port • 1 x VGA |
Internal Ports • 1 x USB 3.0 (optional) |
||
PCIe | 4 PCIe slots: • 1×16 Gen4 (x16 connector) full height, half length • 1×4 Gen4 (x8 connector) full height, half length • 1×4 Gen3 (x8 connector) full height, half length • 1×1 Gen3 (x1 connector) full height, half length |
|
Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi (support only from Dec’21) For specifications and interoperability details, see Dell.com/OSsupport |
|
OEM-ready version available | From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com/OEM. |
===================================
